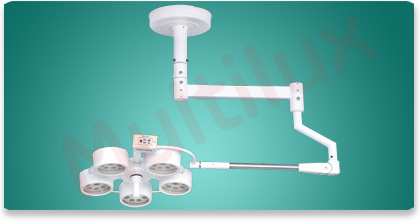

LED Ceiling OT Light - Single Dome




Awesome Image

LED Ceiling OT Light - Single Dome

Shadowless LED Ceiling OT Light - Single Dome which provides illumination between 140.000 lux, 160.000 lux and 180.000 lux. It makes them ideal for minor surgeries and critical surgeries. MULTILUX lights are true operating lights in their reduced dimensions. They have outstanding illumination quality with all functions of a full sized operating light.

Technical Specification Cooled LC-59
Lamp Head Diameter > 600 mm Dia
No of LED 45 LED
LEDs lifetime in hours 50000 hr
Illuminations  180000 Lux
Intensity Control 0 to 100
Color Temperature 4000 to 5000 degree Kelvin
CRI (Ra) >93
Depth of Illumination 120cm
Field Size 12-16 cm
Height Adjustable 76 to 96 cm
Type of Control Panel Manual & Touch screen
Handel Type Detachable Sterilizable Handle
Dome Roatation  360 degree
Movement Radial, Axial, Angular
Arm Length
Power Supply SMPS
Bulb Type & Rating Hi-Power LED, 18-21watts
Input Voltage (Mains) 160 - 230V AC with Indian Plug
ULS Battery Backup (optional) 60 minutes

Silent Features:

Homogeneous & Shadow Free: Light provides homogeneous & Shadow free with uninterrupted illumination in case of blocking of the LED modules by the head or shoulders of the surgical staff.
Deep Cavity illumination: Adjustable focusing System facilitates illumination into deep cavity.
Cool Light: LED Light restricts the temperature increases at surgeon’s head below 1 degree & at operative field below 5 degree.
Long durability: Lamp is rust free Epoxy Powder Coated .
No Break Down: Wiring is done with special Silver coated Teflon Wire.Also the dome has in built Swivel Locking System which protects from wire break down.
Natural White Light: LED Light provide Natural white light that facilitates good color fidelity.
High Intensity: Hi-Power LED’s provides efficient high intensity light.
Detachable Sterilizable Handle: Provided with Detachable Sterilizable Handle for positioning and focussing .


Spectrum Analysis of Optical Parameters in all LED OT Lights:

Confirms Natural Day Light & High CRI facilitates good Color Fidelity.
Each OT Lights undergoes spectrum analytical test that accompanies test reports with supplied unit.

Color Spectrum
CCT- XY Index CIE1931
CCT- UV Index CIE1976
CRI Graph Color rendering R1 ~R15
Fidelity Index-RF R1 ~R5
Gamut index TM-30-18
Gamut Index (Rg) TM-30-18
Color Vector Graphic
C78.377-2008
Standard Deviation Colour Matching
